Colored tile
YX32-130-780,YX35-190-950,YX35-238-950,YX38-300-900,YX18-76-836,YX18-76-988.
Keywords：
Colored tile
Description
| Item | Metal Roofing / corrugated sheets/ |
| Standard | GB AISI ASTM JIS EN |
| Grade | CGCC SGCC |
| Technique | Cold Rolled/hot dipped galvanized |
| Thickness | 0.18mm-0.8mm |
| Width | 750mm-1050mm |
| Profile |

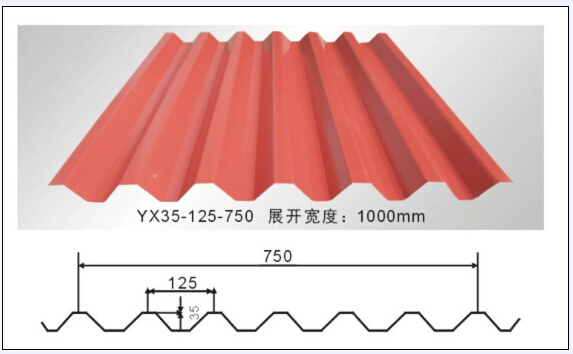

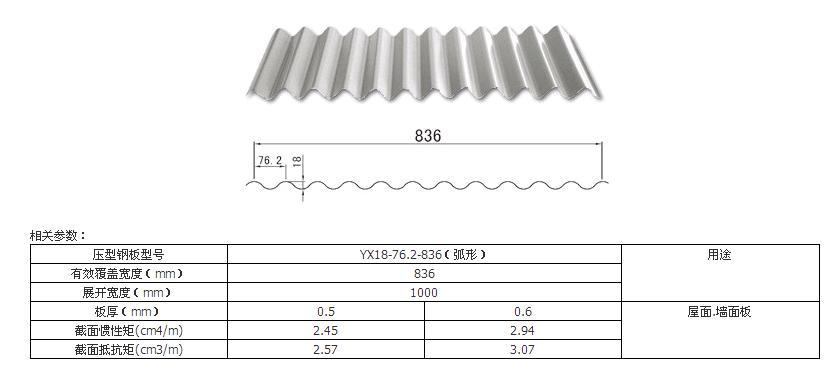

YX10-110-880,YX8-100-962,YX15-225-900,YX25-205-820, YX25-210-840,YX25-210-1050,YX25-250-1000,YX35-125-750, YX32-130-780,YX35-190-950,YX35-238-950,YX38-300-900,YX18-76-836,YX18-76-988. |
| Zinc Coating | 20g/㎡-275g/㎡ |
| Top coating thickness | 12um-25um |
| Back coating thickness | 5um-10um |
| Painting Material | PE/HDP/SMP/PVDF |
| Coating Structure | 2/1,2/2,1/1 |
| Color | RAL number , or color sample |
| Coil Wet | 2.5mt—8mt |
| Application | Wall/Roofing/Interior decoration |
